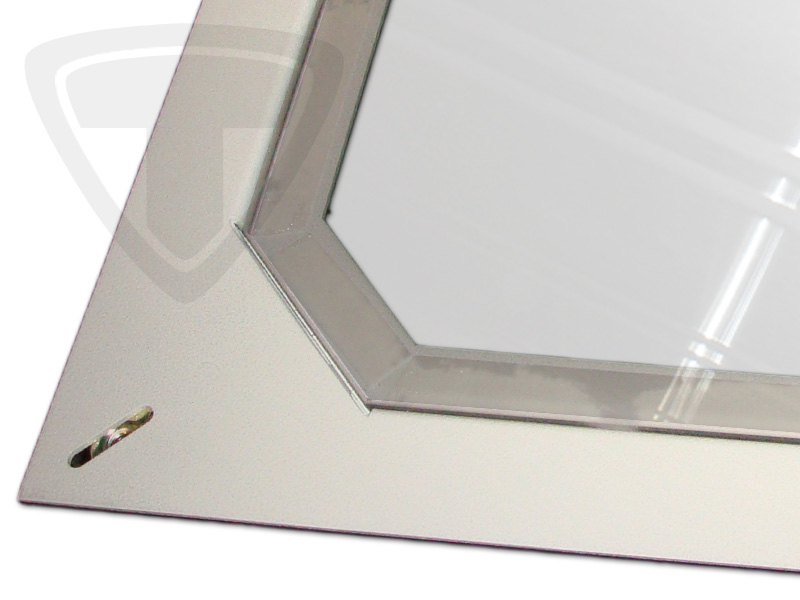

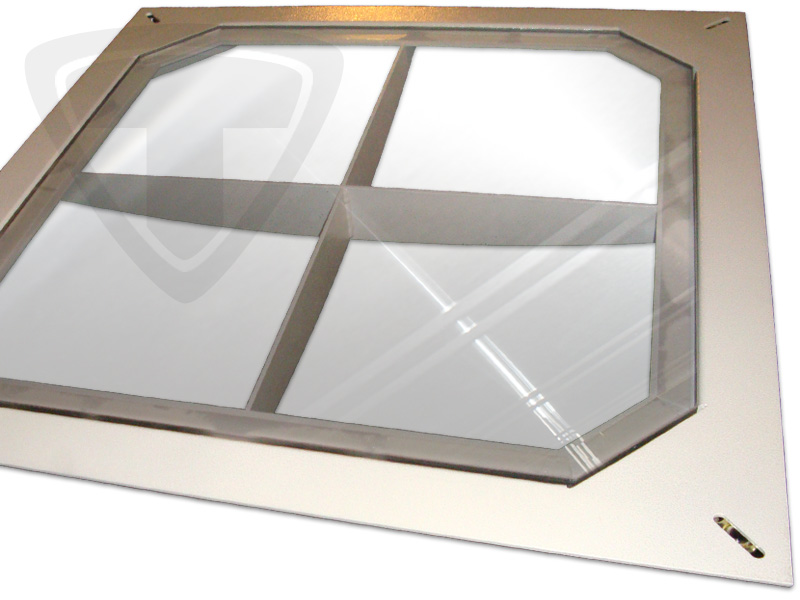

Triad's ClearView panel is designed to provide optimal viewing for both Imperial and Metric raised floor systems that have maximum stringer width of 1.75”. While providing operational ability to spot check underfloor maintenance without the need of disrupting the air supply plenum under the raised floor.
This panel is built to provide up to 1500lbs concentrated capacities while versatile enough to be adjusted with the patent pending corner adapters either vertically or horizontally to flush mount to most all imperial or metric raised floor systems, regardless of age.
Triad's ClearView panel features:
- Scratch Resistant Surface
- Virtually Unbreakable
- Highest rating for plastic
- Long Lasting Clarity
Triad's PowderPlate textured encapsulated finishes are electro-statically applied providing the lowest maintenance and longest lasting finish available in the industry.
| Model | Load Rating | Available Features | Compatibility |
| 15CLR | 1500 lbf | Size: 24" x 24" Horizontal & vertical levelers PowderPlate finish (8 available colors) |
Compatible with most new or existing raised floor systems. |
| 15CLRM | 680 kgf Using AVDP conversion |
Size: 600 x 600 mm
Horizontal & vertical levelers PowderPlate finish (8 available colors) |
Compatible with most new or existing raised floor systems. |
